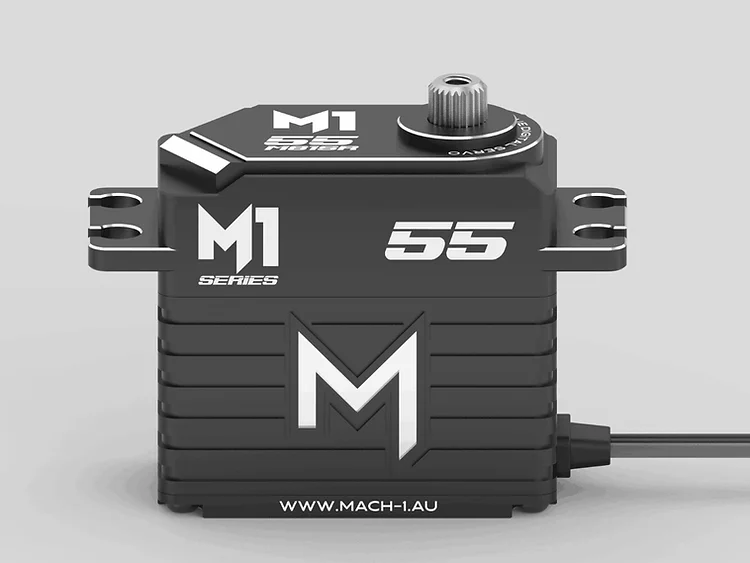

or 4 payments of After more than 6 months of development and testing we are excited to launch our latest servo, the M1 SR SERIES 55KG digital programmable servo.
Succesfully proven across the globe in 1:8 scale electric and nitro buggy and truggy at some of the largest events in the world as:
2024 Dirt Nitro Challenge.
2024 Psycho Nitro Blast.
2024 Silverstate.
2024 RCRA Queensland State Titles.
2024 Philippines Masters.
And many many more regional events across Australia and the USA!
We wanted to make something special, we updated the design and the materials used including:
New hardened stainless steel gears matched to a new hardened retaining pin with reinforced housing in the servo case.
Bearings, the new design now utilises 4 dustproof ball bearings,
A new high torque 4-pole brushless motor, increasing the torque and speed. We have updated the case and motor housing now encorporating all alloy 3 piece construction elimates flex and any side sway spline movement.
A new logic board, being Mach-1 its programmable!
Of course we kept our precise magnetic encoder which allows the servo run in very humid conditions.
Feature
* Programmable high voltage Digital Servo
* Beautifully designed CNC machined alloy case
* Hardened Stainless Steel Gears with reinforced pin.
* New Ultra Strong 55KG brushless Motor
* Four Dust Resistant Bearings
* Reinforce Pin Shaft and Structure
* 2S LiPo Wide Voltage Capable
* 25T Output Spline
* IP67 RATED Waterproof
Designed to last, engineered to perform – race proven.
Working volatges:
4.8, 6.0, 7.4 and 8.4V
Speed:
- 0.125sec/60° @ 4.8V
- 0.105sec/60° @ 6.0V
- 0.092sec/60° @ 7.4V
- 0.082sec/60° @ 8.4V
Stall Torque:
- 36 kg-cm (500 oz-in) @ 4.8V
- 43 kg-cm (597 oz-in) @ 6.0V
- 48 kg-cm (667 oz-in) @ 7.4V
- 55 kg-cm (750 oz-in) @ 8.4V
- Gears: Hardened Steel
- Motor: 4-Pole Brushless Motor
- Size: 40*20*38mm (1.57 x 0.78 x 1.49 in)
- Weight: 83g
- Connector Wire: 300mm / 22AWG
